V300

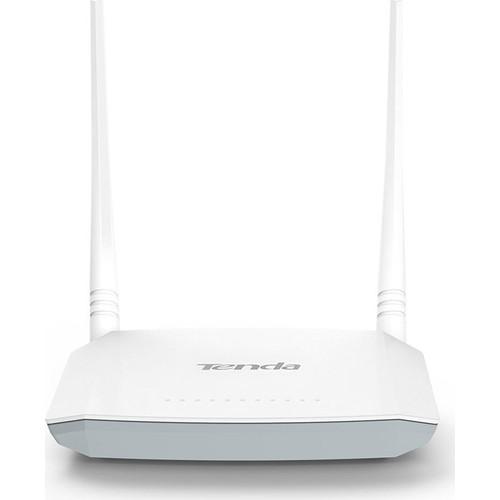

300 Mbps Wireless N VDSL2 Modem Router



Teknik Özellikler



Standart

IEEE802.11b/g/n
IEEE 802.3, 802.3u
G.994 compliant
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.992.3 (G.dmt.bis) Annex A/L/M
ITU-T G.992.5 Annex A
G.993.2 (VDSL2), Supports 17a profile
G.993.5 (G.vector)
G.993.2 Amd 7 (ToD)
G.998.4 (G.inp)
ATM and PTM (dual-priority)





Arayüz

RJ11 × 1
Power Jack × 1
USB2.0 × 1
10/100Mbps LAN × 3
10/100Mbps WAN/LAN × 1





Anten

5dBi External Omni directional × 2





Buton

Reset(RST) × 1
WPS × 1
WLAN On/Off × 1
Power On/Off × 1





Güç Adaptörü

Input: 100 - 240V 50/60Hz
Output: 12V1.0A





Boyut

157.8 × 105.2 × 29.4mm





LED

PWR, INTERNET, USB, WPS, WLAN, 4/iTV, LAN3, LAN2, 1/WAN, DSL





Kablosuz Hız

300Mbps





Sıklık

2.4GHz





RF Gücü

<20dBm(EIRP)





Temel Özellikler

Wireless switch enable/disable
SSID Broadcast enable/disable
Country Options
Channel: Auto, 1-13
Bandwidth: Auto, 20MHz, 40MHz
Client List
WDS





Kablosuz Güvenlik

Wireless MAC Filtering
Support 64/128 bit WEP
WPA-PSK/WPA2-PSK
WPS





Bağlantı Türü

PPPoE, PPPoA,IPoA, MER, Bridge, 3G/4G Backup





Operating Mode

Wireless Modem Router, 3G/4G Wireless Router, Wireless Router





İleri Fonksiyonlar

PVC/VLAN Configuration
MAC Clone
DSL Settings
Interface Grouping
QoS
USB Sharing(Samba)
Parental Control
IPTV





3G / 4G Yedekleme

Dongle Support
APN setting





USB Paylaşımı

Storage Sharing( Samba, FTP ), Media Server(DLNA)
DHCPDHCP Server
Client List
Address Reservation
Sanal SunucuPort Forwarding
Port Triggering
DMZ
UPnP
GüvenlikIP Filter
MAC Filtering
IPv6Support 6RD & DS-Lite, IPv6 and IPv4 dual stack





Yönetim

LAN IP Setting
Backup & Update & Restore to factory default
System Logs
SNMP Agent
TR-069 Client
Internet Time
Access Control
Update Software via web, TFTP & FTP
Diagnostics





Diğer

DDNS, IGMP Multicast, VLAN, 802.1Q, Routing





Sıcaklık

Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40ºC~70ºC





Nem

Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing





Varsayılan Ayarlar

IP Address: 192.168.1.1
Login Username：admin Login Password: admin







Paket İçeriği

300Mbps Wireless N VDSL2 Modem Router × 1
Quick Installation Guide x 1
Power Adapter x 1
Ethernet cable (RJ45) x 1
Telephone cable ( RJ11) × 2
Splitter x 1
